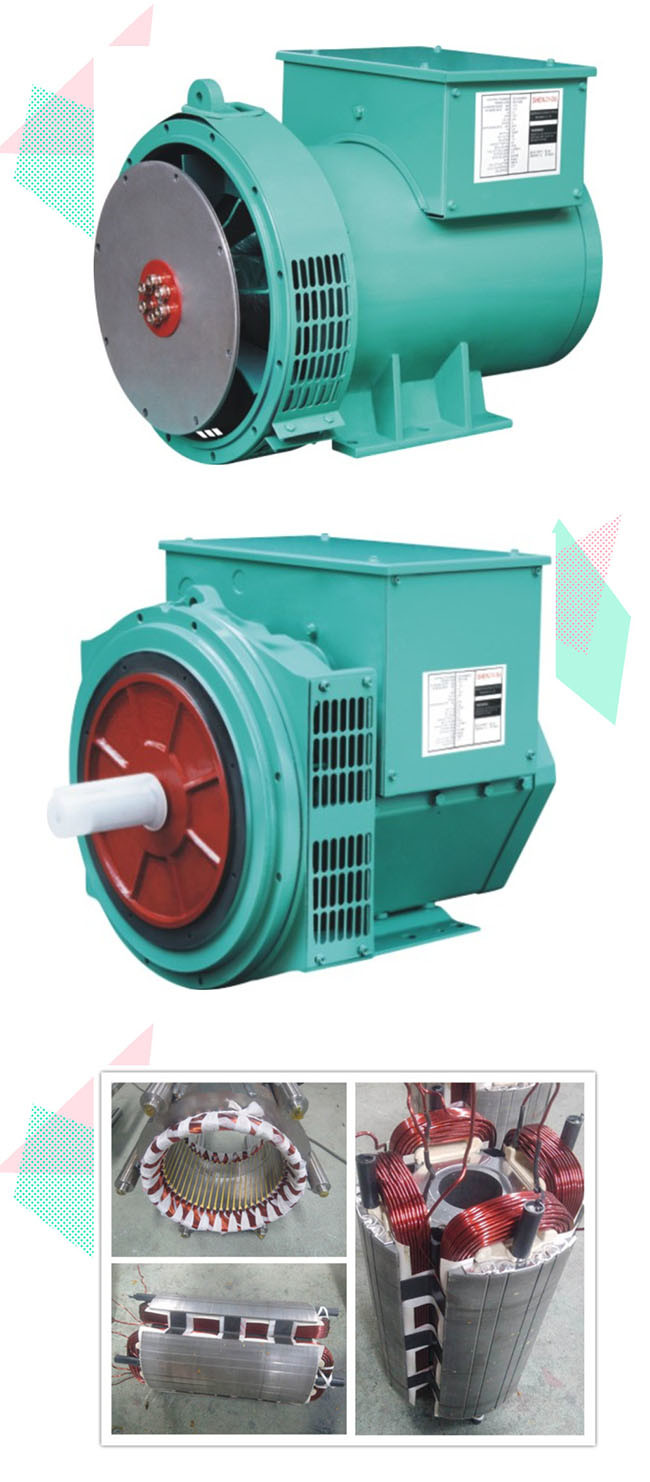

30KVA Stamford Type Alternator

30KVA 24KW Brushless Alternator Brushless Synchronous AC Alternator Stamford Type Coupied With Engine

Specifications
1) Power range: 8-600kVA(6.5-536kw).
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option, and High-Voltage Alternator(4KV&11KV) also available

FEATURES :
1. Any permanent magnetic generations,providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generations.Standard 2/3 pitch windings check excessive midline current.
3. Bala nced rotor with single or two sealed ball bearing.
4. Convenient installation and maintenance with easy access to terminals,rotating diodes and coupling bolts
5. Wide range of Flange adaptor and single bearing coupling disc
6. Meet leading Industry and marine Standards

Model	Prime Output (1500rpm/50Hz) 400V		Prime Output (1800rpm/60Hz) 440V
Model	KVA	KW	KVA	KW
AP-164A	8.1	6.5	10.2	8.2
AP-164B	11	8.8	13.8	11
AP-164C	13.5	10.8	16.9	13.5
AP-164D	16	12.8	20	16
AP-184E	22.5	18	28.8	23
AP-184F	27.5	22	34.4	27.5
AP-184G	31.3	24	37.5	30
AP-184H	37.5	30	46.9	37.5
AP-184J	40	32	50	40
AP-224C	42.5	34	52.5	42
AP-224D	50	40	62.5	50
AP-224E	60	48	70	56
AP-224F	72.5	58	87.5	70
AP-224G	85	68	97.5	78
AP-274C	100	80	117.5	94
AP-274D	120	96	137.5	110
AP-274E	140	112	167.5	134
AP-274F	160	128	190	152
AP-274G	180	144	218.5	174.8
AP-274H	200	160	245	196
AP-274J	230	184	281	224.8
AP-274K	250	200	299	239.2
AP-314C	250	200	294	235
AP-314D	295	236	350	280
AP-314E	325	260	394	315
AP-314F	380	304	456	365
AP-354C	450	360	550	440
AP-354D	500	400	594	475
AP-354E	600	480	713	570
AP-354F	670	536	775	620
