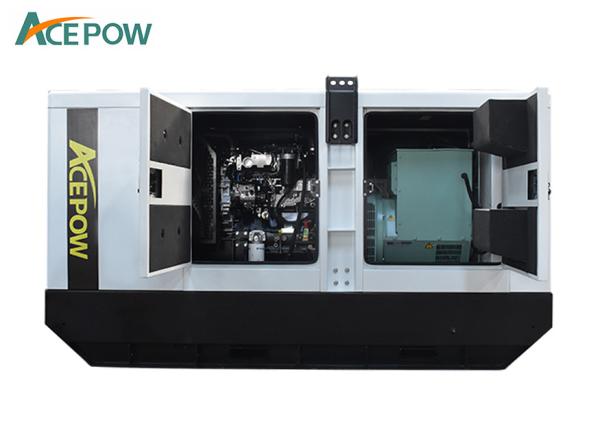

Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator

Ask Lasest Price
Brand Name :	ACEPOW
Model Number :	APF-100
Certification :	CE,ISO, SASO
Price :	Negotiate
Payment Terms :	L/C, D/P, T/T
Supply Ability :	10000SETS/YEAR
Delivery Time :	25 DAYS

Add to Cart

Product Details
Company Profile

Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator

Noiseless Super Silent Diesel Generator 100kva 80kw Fawde Engine Water Cooled Silent Generator Set

Features :

1) Brand-new engine,w/start motor.

2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.

3) Auto control panel with LCD display.

4) Skid-mounted bottom 8 hours fuel tank.

5) Extemal recessed emergency stop button for extra safety.

6) Optional: Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

Engine
* Four stroke, water cooled
* 12V and 24V stater and charge alternator
* Cooling radiator and fan
* Flexible fuel connection hoses and manual oil sump drain valve
* Exhaust silencer
Alternator
* Brushless, single bearing, flexible disc
* Protection class: IP23
* Self-exciting and Self-regulation
Canopy
* All metal canopy parts painted by electrostatic polyester power paint
* Convenient to lift and move
* Easy to maintenance and operate

MODEL	APF-100
PRIME POWER (KVA/KW)	100/80
STANDBY POWER(KVA/KW)	110/88
Rated voltage(V)	400/230
Rated speed(rpm)	1500
Rated frequency(Hz)	50
Power factor	0.8
Ambient temperature(C)	40
Altitude(m)	1000
Connection type	3 phase 4 wires
ENGINE MANUFACTURER	FAWDE
Model	4DX23-65D
Rated Power(kW)	53
No. of cylinders & configuration	In-Line 4 cylinders
Method of operation	4-stroke
Speed regulation	Mechanical governor
Starting system	DC 24V Electronic start
Cooling method	Closed-circuit cooling system
Total displacement(L)	3.86
Compression ratio	17.0:1
BoreXStroke(mm)	102*118
100% Load fuel consumption(L/h)	11
ALTERNATOR MANUFACTURER	STAMFORD
Number of Phase	3
Connection Type	3Phase and 4Wires
Number of Bearing	1
Power Factor	0.8
Protection Grade	IP23
Terminal	12
Winding/ Pitch	100% Coppe 2/3 Pitch
Cooling Fan	Cast alloy aluminum
Exciter Type	Brushless, Self-Exciting
Insulation Class, Temperature Rise	H/H
Telephone Influence Factor( TIF)	TIF <50 / THF<2%
Total Harmonic TGH/THC	<1.5% at no load / <5% at load
Voltage Regulation, Steady State
Sustained Short-Circuit Current	300%(3 in): 10s
CONTROL SYSTEM	UK DEEP SEA SERIES

Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator
