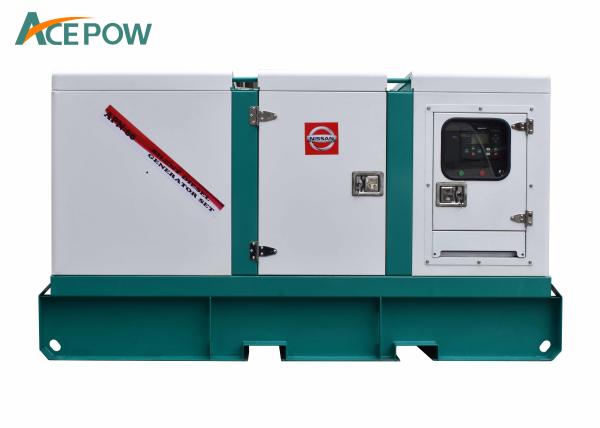

65db Silent Canopy Diesel Generator Newmax 30kva 25kw Diesel
Generating Set Emergency Standby Power Genset
OUR GENERATOR ADVANTAGE :
Manufacturer from Fujian, China
Professional produce and inspect team more than 10 years experience
100% test on idle load,fully load and 10% overload before shipment
ISO9001 quality control system and CE certification.
1 year guarantee
Customerization supported
DESCRIPTION :
1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H
insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery
charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40ºC ambient temperature and double-deck
cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base
frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10) Optional: Soundproof,ATS(automatic transfer switch),AMF
panel,Trailer,Parallel system.
Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
| Genset model : APN-30 | Brand: Ricardo-NEWMAX |
| Type : | Silent | ATS : | Optional |
| Fuel Tank running hours: | 8/10/12H | Socket: | Optional |
| Prime Power (KW/KVA): | 24/30 | Frequency, (HZ) : | 50HZ |
| Standby Power (KW/KVA): | 27/33 | Voltage (V): | 230V/400V |
| Genset size(mm) (L×W×H): | 1730*740*1100 | Phase No. : | 3 |
| N.W.(kgs): | 680 | G.W.(kgs) | 686 |
| Packing | Plastic Films | Controller : | HGM 6120 |
| Engine data : | Alternator data : |
| Model : | NM-528 | Model : | BC184G |
| Governor type: | Mechanical Governor | Capacity (kVA): | 30 |
| Speed (r/min): | 1500 | Power factor: | 0.8 |
| Prime power(KW): | 30 | Efficiency: | 0.817 |
| Standby power(KW): | 33.0 | Bearing number: | 1 |
| Cylinder No.&Config.: | 4-cylinder in-line | Leads number: | 12 |
| Fuel tank Vol.(L): | 50 | Voltage(V): | 400 |
| Displacement (L): | 2.7 | Voltage accuracy: | ≤1.5% |
