    Electric Starting 100KVA 85KW Natural Gas Standby Generator

    Ask Lasest Price
    Brand Name : ACEPOW
    Model Number : APNG-50
    Certification : CE,ISO, SASO
    Price : Negotiate
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 10000SETS/YEAR
    Delivery Time : 25 DAYS
    • Product Details
    • Company Profile

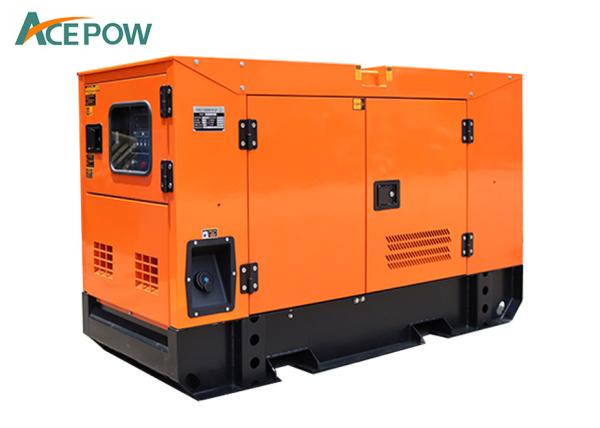

    Electric Starting 100KVA 85KW Natural Gas Standby Generator

    100KVA 85KW Natural Gas Standby Generator 100 Kw Natural Gas Generator Heavy Duty Industrial Type


    Features :

    The nature gas engine is designed base on the diesel engine of international well known brand--Cummins.
    The research and develop is worked according to the gas combustion characteristics and control principle.
    The main part production process is strictly follow the international advanced level.
    The special design and manufacturing could ensure the engine reliability and durability.


    Special designed vavle :
    1. Increase the area of the intake and exhaust vavle.
    2. Make sure there is sufficient intake air
    and exhaust air in the combustion process.
    3. Increase the torque and power.
    4. Increase the gen-set load capability


    GENSET MODELAPC-85GAPC-113G
    Prime output(KW/KVA)85/100113/141
    Standby output (KW/KVA)97/110133/155
    Rated Voltage(V)220/380,230/400;etc
    Frequency (HZ)50HZ/60HZ
    DIESEL ENGINE MODEL6BTAA5.96CTAA8.3
    Rated ouput (kw)100133
    Intaking methodTurbocharged and after cooled
    Cylinder Numbers66
    Rated Speed (rpm)15001500
    Bore x store (mm)102x120114x135
    Compression Ration10.5:110.5:1
    Displacement (L)5.98.3
    Governing methodElectric
    Start method24V Electric starting
    ALTERNATOR BRANDStamford
    ModelUCI274DUCI274E
    Rated Output KW96112
    Rated Speed rpm15001500
    Phase Connection3 phase
    Winding connection4 wires connected
    Excitation methodBrushless
    Insulation classH
    Genset Weight open type(kgs)12001400
    Genset Size open type (mm)2350*1100*14002500*1100*1400
