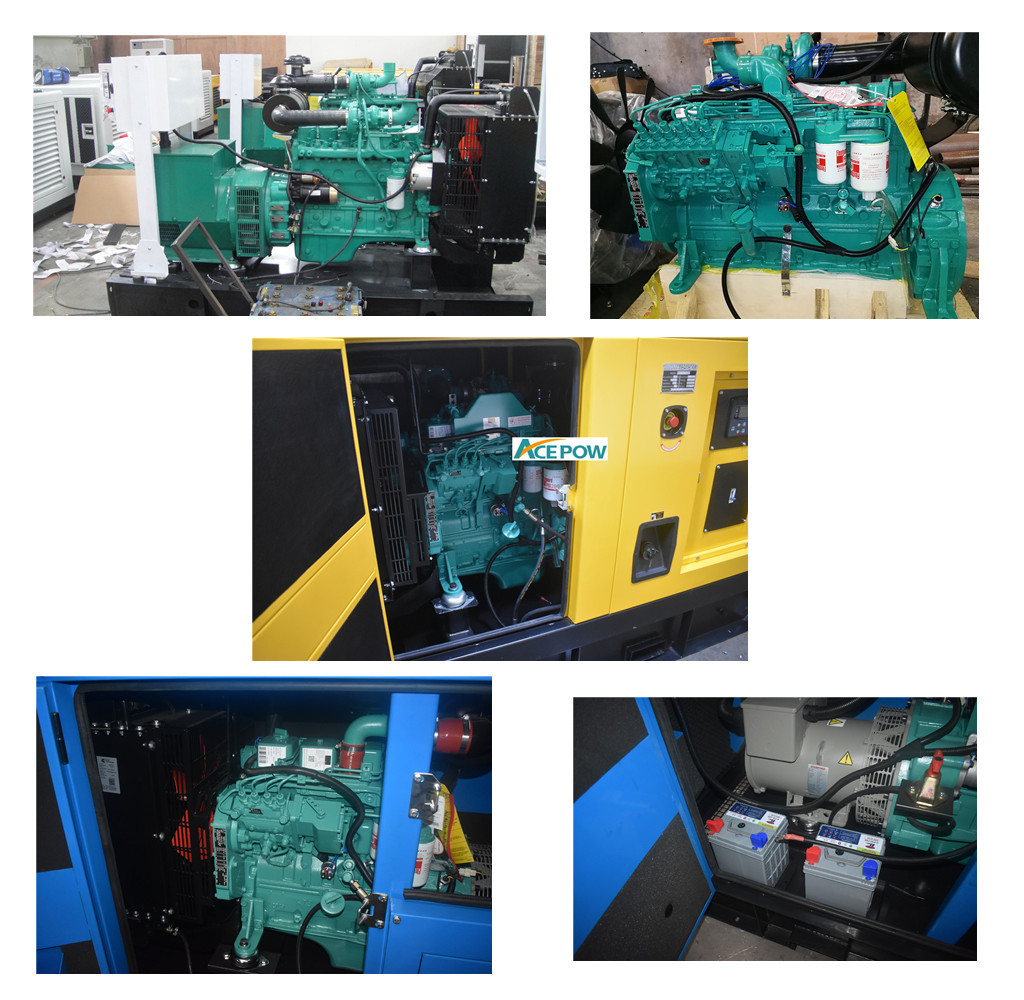

3 Phase Silent Diesel Generator Set 100kva 80kw 50hz 60hz Cummins
6bt5.9-G1 Water Cooled Diesel Driven Generator
50hz@1500rpm or 60HZ@1800rpm all are available
Engine Brand: Cummins
Alternator Brand: Stamford, Leroy Somer, Chinese Stamford for
options
Controller: SmartGen, Deepsea, ComAp for options
Fuel tank: Big fuel tank for 8 hours continuous working, 12/ 24/ 48
hours built in or external fuel tank Optional
DESIGN: Canopy and open type for options
Certificate: CE SASO
Condition: Brand New
Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
| Generating Set Model | Prime | Standby |
|
| APC-100 | 100kVA/80kW | 110kVA/88kW |
| Ratings and Performance Data |
| Generating Set Model | Length (L) mm (in) | Width (W)
mm (in) | Height (H)
mm (in) | Net
kg (lb) | Gross
kg (lb) |
|
| APC-100 | 2200 | 900 | 1300 | 1280 | 1330 |
| APCS-100 | 2920 | 1080 | 1670 | 1700 | 1750 |
| Dry = With Lube Oil Wet = With Lube Oil and Coolant |
| Engine Brand | DCEC Cummins |
| Engine Model | 6BT5.9-G2 |
| Alternator Brand | Stamford |
| Alternator Model | UC274C / UCI274C |
| Engine Model | 6BT5.9-G1 |
| Engine Brand | DCEC Cummins |
| Prime power/Standby power (kw) | 86/92 |
| Number of Cylinders | 6 |
| Cylinders Arrangerment | Vertical in-line |
| Bore/Stroke (mm) | 102/120 |
| Speed (RPM) | 1500 |
| Displacement (L) | 5.9 |
| Compression Ratio | 17.3:1 |
| Air Intake system | Turbocharged |
| Cooling Method | Water cooled |
| Coolant Capacity (L) | 7.9 |
| Prime power (L/h) | 21.7 |
| Standby Power (L/h) | 23.4 |
| Governing Type | Mech / Electric |
| Governor Regulation | ≤8% |
| Battery (V) | 24 |
| Cooling System |
| Radiator | 50 |
| Coolant Capacity(L) | 7.9 |
| Standard Thermostat (Modulating) Range (°C) | 82-95 |
| Minimum Pressure Cap (kPa) | 69 |
| Maxmum Top Tank Temperature (°C) | 104 / 100 |
Warranty :
12 months or 1000 running hours from shipment date. If the quality
problem arise during the warranty period, and verified the problem
is caused by our genset-body instead of external or natural
reasons. (Refer to a
ll kinds of natural disaster, shipping, loading, unloading,
wrong-operation, etc), we will supply the relevant spare parts free
of charge for maintenance; after the warranty period, we can supply
the required spare parts for you under cost prices.
FAQ:
Q1: What is your warranty period?
A: 12 months or 1000 running hours from shipment date. If the
quality problem arise during the warranty period, and verified the
problem is caused by our genset-body instead of external or natural
reasons. (Refer to all kinds of natural disaster, shipping,
loading, unloading, wrong-operation, etc), we will supply the
relevant spare parts free of charge for maintenance; after the
warranty period, we can supply the required spare parts for you
under cost prices.
Q1: Do you offer OEM service?
A: Yes. We have own design team, we can make diesel generator set
as per your design and your brand logo.
Q1: How could I trust you?
A: During production and aseembling, we would like to provide all
progress of pictures, videos, testing report, then we invite you to
come to visit our factory and production workshop to witness a load
test and see the professional operation we have to go on here.
Q1: What's the frequency of diesel generators?
A: 50/60HZ.
Q1: What's the voltage of your diesel generator?
A: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and
double voltage or high voltage.
Q1: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type
(silent type) diesel generators, trailer-mounted diesel generators,
containerized diesel generators, high voltage diesel generators,
synchronized diesel generators.
