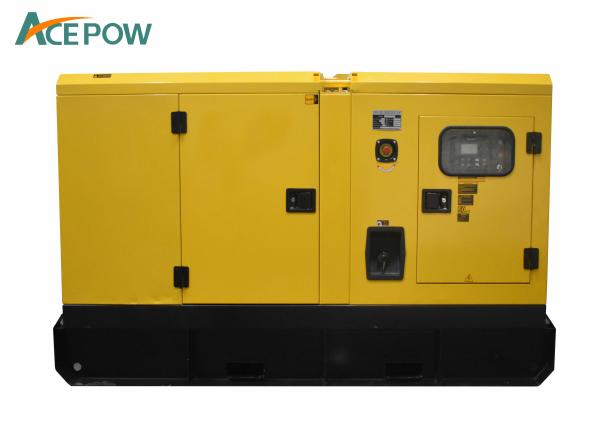

8 Hours Base Fuel Tank Silent Diesel Generator Set Ricardo 150kva
120kw Generator Soundproof And Ats
Rated power: 5kVA-2500kVA
Frequency: 50/60Hz
Speed: 1500/1800rpm
Voltage: 110/220V, 230/400V, 220/380V
Fuel tank: 8, 12, 24, 48 hours operation fuel tank
Water tank: 40-50ºC environmental protection
Diesel engine: 4 stroke, water cooled
Alternator: Stamford brush less alternator
Noise level: Below 72dB @7meters
Type: Super-silent, silent, open, mobile, container type
Optional: ATS, water heater, fuel heater...
Controller: Deepsea,Smartgen, Datakon
Delivery time: within 20 days
Export port: Fuzhou, China
Warranty: Running 1000 hours or 12 months
| Generating Set Model | Prime | Standby |
|
| APW-150 | 150kVA/120kW | 165kVA/132kW |
| Generating Set Model | Length (L) mm | Width (W) mm | Height (H) mm | Net
kg (lb) | Gross
kg (lb) |
|
| APW-150 | 2350 | 900 | 1400 | 1260 | 1340 |
| APWS-150 | 2920 | 1080 | 1670 | 1750 | 1830 |
| Dry = With Lube Oil Wet = With Lube Oil and Coolant |
| Ratings and Performance Data |
| Engine Brand | Ricardo |
| Engine Model | R6105BZLDS |
| Alternator Brand | Stamford |
| Alternator Model | UC274F/UCI274F |
| Control System | Smartgen HGM6120N |
| Circuit Breaker Type | / |
| Frequency / Phase | 50Hz/ Three phase |
| Engine Speed ( RPM) | 1500Rpm |
| Fuel Tank Capacity (L) | 310 |
| Fuel Consumption rate (g/kW.h) | 218 |
| Model Type | Open / Silent |
| Standard Package | Plywood case/ Plastic |
| Noise Level@7m (dBA) | 70 |
| Generator set Manufacture | Acepow |
| Oil Consummption (L/h) | 1.06 |
| Volatage (V) | 220/230/240 |
| Silencer Noise Reduction (dBA) | 10-20 |
| Engine Technical Data |
| Engine Model | R6105BZLDS |
| Engine Brand | Ricardo |
| Type | Water cooling,in line,four-stroke,wet liner and direct injection |
| Rated output (kw) | 132.5 |
| Prime power (g/kw.h) | 218 |
| Standby Power (g/kw.h) | 219 |
| Governing Type | Mech / Electric |
| Fuel System |
| Fuel Tank | Steel |
| Fuel Tank Capacity (L) | 310 |
| Fuel tank type | Bottom |
| Recommended Fuel Type | 0# or ASTM2 |
| Injection System | BYC A Direct injection |
| Fuel Consumption: |
| APW-150 | 100% Load | 90% Load | 70% Load | 50% Load | 20% Load |
| g/kw.h | 218 | 219 | 224 | 229 | 241 |
Warranty:
12 months or 1000 running hours from shipment date. If the quality
problem arise during the warranty period, and verified the problem
is caused by our genset-body instead of external or natural
reasons. (Refer to all kinds of natural disaster, shipping,
loading, unloading, wrong-operation, etc), we will supply the
relevant spare parts free of charge for maintenance; after the
warranty period, we can supply the required spare parts for you
under cost prices.
FAQ:
Q1: Are you a trading company or manufacturer?
A: We are more 50 years experience diesel generator manufacturer in
China.
Q2: What is the power range of your diesel generator?
A: Our diesel generator power ranges from 5KVA-2000KVA.
Q3: How long is your delivery time?
A: Our diesel generator set production time is 15-30 days, depends
on quantity.
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid against the copy of
BL, or Irrevocable 100% LC at sight.
Q5: What is your warranty period?
A: 12 months or 1000 running hours from shipment date. If the
quality problem arise during the warranty period, and verified the
problem is caused by our genset-body instead of external or natural
reasons. (Refer to all kinds of natural disaster, shipping,
loading, unloading, wrong-operation, etc), we will supply the
relevant spare parts free of charge for maintenance; after the
warranty period, we can supply the required spare parts for you
under cost prices.
Q6: Do you offer OEM service?
A: Yes. We have own design team, we can make diesel generator set
as per your design and your brand logo.
Q7: How could I trust you?
A: During production and aseembling, we would like to provide all
progress of pictures, videos, testing report, then we invite you to
come to visit our factory and production workshop to witness a load
test and see the professional operation we have to go on here.
