Excellent Qulaity SX460 Automatic AC Voltage Regulator Generator AVR SX460 for Alternator Brushless

Wholesale Electric Generator SX460 Automatic Voltage Regulator AVR
wooden box,carton case or as customers' required"
Features
With 4% engine governing
After 10 minutes.
Applies to Mod status F onwards. Generator de-rate may apply.
Factory set, semi-sealed, jumper selectable.
Non condensing.

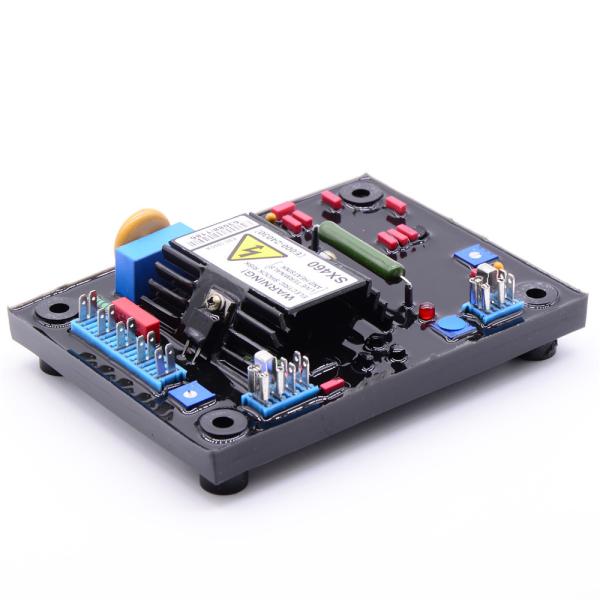

Stamford SX460 AVR is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (VOLTAGE REGULATOR) and forms part of the excitation system for a brush-less generator.

In addition to regulating the generator voltage, the VOLTAGE REGULATOR circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.

Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the VOLTAGE REGULATOR.

INPUT of Newage SX460 AVR

Voltage Jumper selectable

95-132V ac or 190-264V ac

Frequency 50-60 Hz nominal Phase 1

OUTPUT of Newage AVRSX460

Voltage max 90V dc at 207V ac input

Current continuous 4 A dc

Intermittent 6 A for 10 secs

Resistance 15 ohms minimum

Fijian Acepow Equipment Co.,Ltd is located in fuan,fujian,China. It’s special at manufacturing diesel generator set, diesel alternator and motor product. Now our factory, covers an area of 50000 square meters, and have gotten ISO9001 and ISO4001 certificate. Our diesel genset have passed CE, SASO, SONCAP certificate.

Now our mainly brand for generator set is Cummins, Perkins, Deutz, Isuzu, Weichai, Shangchai, Yangdong, Quanchai and so on. And our alternator mainly brand conclude Stamford, Leroy somer, Marathon, Mecc alte.

Our mainly exporting market is South-east Asia,South-America,MID-east,South-Asia,Africa and so on. Acepow will be your best power supplier!

ACEPOW Disesel Generating Sets is the product of full experienced engineers designing series of modern generators which is applicable for construction or for back-up power.

The ACEPOW generators has a unique, compact design using the most reliable diesel engine in China featuring low fuel consumption, low maintenance cost, long life, easy to operate and transport.

Our Diesel Generator Engine for Choice
1.Cummins Engine 20KVA - 2000KVA
2.Deutz Engine 20KVA - 150KVA
3.FPT Iveco Engine 30KVA - 350KVA
4.Perkins Engine 8KVA - 2000KVA
5.Volvo Engine 85KVA - 700KVA
6.Doosan Engine 60KVA - 850KVA
7.Lovol Engine 20KVA - 150KVA
8.Yangdong Engine 8KVA - 40KVA
9. Weichai Engine 8KVA - 150KVA
10. Shanghai Engine 60KVA-1000KVA
11. Yuchai Engine 20KVA-1125KVA

Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
