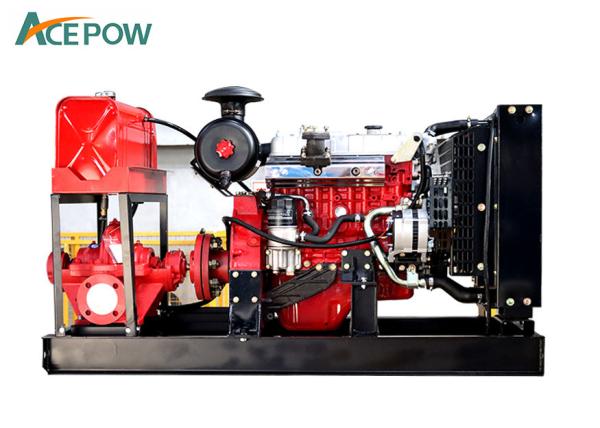

Single Stage 6 Inch 310KW Generator Powered Water Pump

    Buy cheap Single Stage 6 Inch 310KW Generator Powered Water Pump from wholesalers

    Buy cheap Single Stage 6 Inch 310KW Generator Powered Water Pump from wholesalers
    • Buy cheap Single Stage 6 Inch 310KW Generator Powered Water Pump from wholesalers
    • Buy cheap Single Stage 6 Inch 310KW Generator Powered Water Pump from wholesalers

    Single Stage 6 Inch 310KW Generator Powered Water Pump

    Ask Lasest Price
    Brand Name : ACEPOW
    Model Number : APC-50
    Certification : CE,ISO, SASO
    Price : Negotiate
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 10000SETS/YEAR
    Delivery Time : 25 DAYS
    • Product Details
    • Company Profile

    Single Stage 6 Inch 310KW Generator Powered Water Pump

    Cummins Diesel Powered Water Pump 180KW TO 310KW Water Pump Diesel Generator with Certrifugal Pump

    Product features :


    DCEC Cummins engine
    Genset Canopy IP44 protection,Control panel IP56 protection
    Control module Smartgen HGM6120N /DSE3110
    Speed governor:Mech governor
    50℃ radiator
    Fire extinguisher
    Oil pump on the engine

    Stainless galvanized zinc plates with strong corrosion resistance
    Base fuel tank for at least 8 hours running
    Equipped with an industrial muffler
    Engine oil pump
    Complete protection functions and safety lables
    Water jacket preheater, oil heater and double air cleaner, etc.


    TYPEMAX POWER(KW)compression ratioOil capacity(L)cooling water capacity(L)G.W KGBore/Stroke (mm)
    ISG4.5-G1180/ 300RPM17.3:1138.5381107*124
    ISG6.7-G1230/ 300RPM17.3:119.710519107*124
    ISG8.9-G1270/ 300RPM16.6:127.411.1706114*144
    ISG8.9-G2310/ 300RPM16.6:127.411.1760114*144
    Water pump parameters:
    ModelIS150-125-315
    TypeSingle grade, single suction,centrifugal
    Outflow240m3/h
    Head29m
    Shaft power23.7kw
    Inlet diameter150mm(6inch)
    Outlet diameter125mm(5inch)
    Casing materialcast iron
    Shaft materialcast iron
    Impeller materialcast iron
    Sealing methodStuffing sealing/Mechanical sealing(Optional)

    Single Stage 6 Inch 310KW Generator Powered Water Pump
