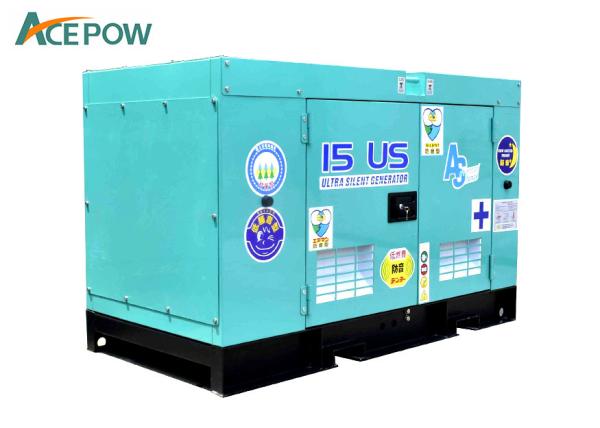

8 Hours Base Fuel Tank Diesel Powered Generator 40kva 30kw Isuzu
4jb1ta Water Cooled Power Genset
NEW DESIGN CANOPY GENERATOR ADVANTAGE :
1. Unique and Compact design Ultra silent design.
2. Brand Engine , low noise, low fuel comsuption
3. Brushless alternator with 100% copper, IP23
4. Digital controller
5. Forklift foot for easy handling
6. Long life, easy operation, easy maintenance
7. Equip Superior quality " VARTA " battery
8. Best quality soundproof Materials to Redue the sound
9. Best quality Power Coating / Mat Finish
10. Stainless Steel all Screws, Nuts, Bolts and Door Locks &
Hinges, Anti-rust.
Alternator: ACEPOW Brushless alternator
Conttrol System: Separaately Excited BY P.M.G.
Insulatiion System : Class H
Protection: IP23
Rated Power Factor: 0.8
Stator Winding: Double Layer Concentric
Winding Pitch: Two Thirds
Winding Leads : 12
Stator Wdg.Resistance: 0.044 Ohms Per Phase At 22°C Series Star
Connected
Rotor Wdg.Resistance: 1.26 Ohms at 22°C
Exciter Stator Resiistance: 20 Ohms at 22°C
Exciter Rotorr Resisttance: 0.091 Ohms Per Phase At 22°C
R.F.I. Suppression: BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G,
VDE 0875N. refer to factory for others
| Genset Model | API-40 |
| Prime Power (kw/kva) | 30/38 | Standby Power(kw/kva) | 33/42 |
| Voltage (v) | 220/ 380V | Rated Speed (rpm) | 1500 |
| Frequency (Hz) | 50 | Rated Current (A) | 54.1 |
| Connection: | 3 phase 4 wire | Power Factor: | 0.8 |
| Engine Model: | 4JB1TA | Alternator Model: | BC184H |
| Net Weight (kgs)-Open | 580 | Net Weight (kgs)-Silent | 1050 |
| Dimensions (mm)-Open | 1550*700*1050 | Dimensions (mm)-Silent | 2100* 1150* 1150 |
| Engine Parameter: | Alternator Technical Data: |
| Manufacturer/Model: | ISUZU 4JB1TA, 4 stroke | Manufacturer: | Copy stamford, BC184H |
| Aspiration: | Turbocharged | Phases: | 3 |
| Fuel System: | Direct type Fuel Pump, | Connection: | 3 phase 4 wire, Y type |
| Cylinder numbers | 4 cylinders | Bearing numbers: | 1 |
| Displacement: | 2.77 L | Power Factor: | 0.8 |
| Bore x Stroke | 93 x 102 mm | Protection Class: | IP23 |
| Compression Ratio: | 18.2:1 | Altitude Condition: | ≦1000M |
| Max. Power: | 31KW /41.331HP | Excitation: | Brushless, self-excitation |
| Governing System: | Electrical | Insulation class/Temp. rise class: | H / H |
